How To Apply JPEG Compression Defense¶
Introduction¶
This notebook provides a beginner friendly introduction to the JPEG compression defense as part of Test & Evaluation with the VisDrone dataset. We first use a PGD attack with a large perturbation and then apply a high quality parameter before comparing the output to the same defense with a lower value for quality. To this end, we plot both the compressed adversarial example as well as the detector’s output. Understanding a defense’s parameters effect on performance is a crucial step in T&E.
❗Defenses may alleviate attacks, but the underlying classifier can still be vulnerable❗
Intended Audience: All T&E Users
Requirements: Basic Python and Torchvision / ML skills, object detection
Notebook Runtime: Full run of the notebook: <3 minutes
Reading time: ~10 Minutes
Order of Completion: Order in the guide.
Before you begin, you will want to make sure that you download the how-to guide’s companion Jupyter notebook. This notebook allows you to follow along in your own environment and interact with the code as you learn. The code snippets are also included in the documentation, but the notebook is provided for ease of use and to enable you to try things on your own.
Note
The How to Defend Object Detection Notebook can be downloaded via the HEART public GitHub.
Contents¶
Imports and set-up
Load data and model
Initialize and run the attack
JPEG compression parameters - high quality
JPEG compression parameters - low quality
Conclusion
Next steps
Learning Objectives¶
How to apply a PGD attack on object detection
How the quality parameter in JPEG compression affects the input image
How the quality parameter affects model performance under attack
1. Imports and Set-up¶
We import all necessary libraries for this tutorial. In this order, we first import general libraries such as numpy, then load relevant methods from ART. We then load the corresponding HEART functionality and specific torch functions to support the model. Lastly, we use a command to plot within the notebook.
import matplotlib.pyplot as plt
import numpy as np
import torch
import cv2
import torchvision
from typing import Tuple, Dict, Any
from heart_library.estimators.object_detection import JaticPyTorchObjectDetector
from datasets import load_dataset
from art.attacks.evasion import ProjectedGradientDescent
from datasets import Dataset
from art.defences.preprocessor import JpegCompression
from heart_library.metrics import AccuracyPerturbationMetric
from heart_library.attacks.attack import JaticAttack
from art.attacks.evasion import ProjectedGradientDescentPyTorch
from functools import partial
from torchvision.transforms import transforms
from io import BytesIO
%matplotlib inline
# given a confidence threshold, determine which of the mdoel's predictions are relevent
def extract_predictions(predictions_, conf_thresh):
# Get the predicted class
predictions_class = [visdrone_labels[i] for i in list(predictions_.labels)]
# print("\npredicted classes:", predictions_class)
if len(predictions_class) < 1:
return [], [], []
# Get the predicted bounding boxes
predictions_boxes = [[(i[0], i[1]), (i[2], i[3])] for i in list(predictions_.boxes)]
# Get the predicted prediction score
predictions_score = list(predictions_.scores)
# print("predicted score:", predictions_score)
# Get a list of index with score greater than threshold
threshold = conf_thresh
predictions_t = [predictions_score.index(x) for x in predictions_score if x > threshold]
if len(predictions_t) > 0:
predictions_t = predictions_t # [-1] #indices where score over threshold
else:
# no predictions esxceeding threshold
return [], [], []
# predictions in score order
predictions_boxes = [predictions_boxes[i] for i in predictions_t]
predictions_class = [predictions_class[i] for i in predictions_t]
predictions_scores = [predictions_score[i] for i in predictions_t]
return predictions_class, predictions_boxes, predictions_scores
#plot an image with objects with the predicted bounding boxes on top
def plot_image_with_boxes(img, boxes, pred_cls, title):
img = (img*255).astype(np.uint8)
text_size = 1.5
text_th = 2
rect_th = 2
for i in range(len(boxes)):
cv2.rectangle(img, (int(boxes[i][0][0]), int(boxes[i][0][1])), (int(boxes[i][1][0]), int(boxes[i][1][1])),
color=(0, 255, 0), thickness=rect_th)
# Write the prediction class
cv2.putText(img, pred_cls[i], (int(boxes[i][0][0]), int(boxes[i][0][1])), cv2.FONT_HERSHEY_SIMPLEX, text_size,
(0, 255, 0), thickness=text_th)
plt.figure()
plt.axis("off")
plt.title(title)
plt.imshow(img, interpolation="nearest")
# plt.show()
#wrapper for image datasets
class ImageDataset:
metadata = {"id": "example"}
def __init__(self, images, groundtruth, threshold=0.8):
self.images = images
self.groundtruth = groundtruth
self.threshold = threshold
def __len__(self)->int:
return len(self.images)
def __getitem__(self, ind: int) -> Tuple[np.ndarray, np.ndarray, Dict[str, Any]]:
image = np.asarray(self.images[ind]["image"]).astype(np.float32)
filtered_detection = self.groundtruth[ind]
filtered_detection.boxes = filtered_detection.boxes[filtered_detection.scores>self.threshold]
filtered_detection.labels = filtered_detection.labels[filtered_detection.scores>self.threshold]
filtered_detection.scores = filtered_detection.scores[filtered_detection.scores>self.threshold]
return (image, filtered_detection, None)
# specific dataset class to craft a targeted adversarial patch
class TargetedImageDataset:
metadata = {"id": "example"}
def __init__(self, images, groundtruth, target_label, threshold=0.5):
self.images = images
self.groundtruth = groundtruth
self.target_label = target_label
self.threshold = threshold
def __len__(self)->int:
return len(self.data)
def __getitem__(self, ind: int) -> Tuple[np.ndarray, np.ndarray, Dict[str, Any]]:
image = self.images.__getitem__(ind)["image"]
targeted_detection = self.groundtruth[ind]
targeted_detection.boxes = targeted_detection.boxes[targeted_detection.scores>self.threshold]
targeted_detection.scores = np.asarray([1.0]*len(targeted_detection.boxes))
targeted_detection.labels = [self.target_label]*len(targeted_detection.boxes)
return (image, targeted_detection, {})
2. Load Data and Model¶
We load the data, importing only a small part (5 samples) to save compute for this small demonstration. We then define the model and wrap it as a JATIC PyTorch classifier and test its output on our samples.
visdrone_labels = [
'N/A', 'person', 'bicycle', 'car', 'motorcycle', 'airplane', 'bus',
'train', 'truck', 'boat', 'traffic light', 'fire hydrant', 'N/A',
'stop sign', 'parking meter', 'bench', 'bird', 'cat', 'dog', 'horse',
'sheep', 'cow', 'elephant', 'bear', 'zebra', 'giraffe', 'N/A', 'backpack',
'umbrella', 'N/A', 'N/A', 'handbag', 'tie', 'suitcase', 'frisbee', 'skis',
'snowboard', 'sports ball', 'kite', 'baseball bat', 'baseball glove',
'skateboard', 'surfboard', 'tennis racket', 'bottle', 'N/A', 'wine glass',
'cup', 'fork', 'knife', 'spoon', 'bowl', 'banana', 'apple', 'sandwich',
'orange', 'broccoli', 'carrot', 'hot dog', 'pizza', 'donut', 'cake',
'chair', 'couch', 'potted plant', 'bed', 'N/A', 'dining table', 'N/A',
'N/A', 'toilet', 'N/A', 'tv', 'laptop', 'mouse', 'remote', 'keyboard',
'cell phone', 'microwave', 'oven', 'toaster', 'sink', 'refrigerator', 'N/A',
'book', 'clock', 'vase', 'scissors', 'teddy bear', 'hair drier',
'toothbrush'
]
NUM_SAMPLES = 5
data = load_dataset("Voxel51/VisDrone2019-DET", split="train", streaming=True)
sample_data = data.take(NUM_SAMPLES)
def gen_from_iterable_dataset(iterable_ds):
yield from iterable_ds
sample_data = Dataset.from_generator(partial(gen_from_iterable_dataset, sample_data), features=sample_data.features)
IMAGE_H, IMAGE_W = 800, 800
preprocess = transforms.Compose([
transforms.Resize((IMAGE_H, IMAGE_W)),
transforms.ToTensor()
])
sample_data = sample_data.map(lambda x: {"image": preprocess(x["image"]), "label": None})
MEAN = [0.485, 0.456, 0.406]
STD = [0.229, 0.224, 0.225]
preprocessing=(MEAN, STD)
detector = JaticPyTorchObjectDetector(model_type="detr_resnet50",
device_type='cpu',
input_shape=(3, 800, 800),
clip_values=(0, 1),
attack_losses=("loss_ce",),
preprocessing=(MEAN, STD))
detections = detector(sample_data)
# plot the input images with the corresponding classification output
for i in range(1): # to plot all: range(len(sample_data))):
preds_orig = extract_predictions(detections[i], 0.8)
img = np.asarray(sample_data.__getitem__(i)['image']).transpose(1,2,0)
plot_image_with_boxes(img=img.copy(), boxes=preds_orig[1], pred_cls=preds_orig[0], title="Detections")
3. Initialize and Run the Attack¶
We initialize the attack with a very strong maximal allowed perturbation (eps=0.05) to create a visible perturbation to analyze the effect of the detector better.
attack = JaticAttack(
ProjectedGradientDescent(
detector,
max_iter=15,
eps_step=0.01,
eps=0.1,
targeted=False,
verbose=False
),
norm=2
)
x_advPGD, y, metadata = attack(data=sample_data)
detections = detector(np.stack(x_advPGD))

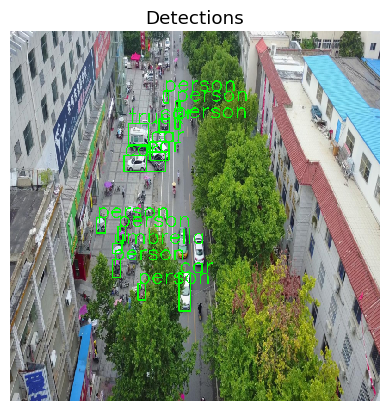

#plot images and predictions for two images
for i in range(1): #for all, write range(len(x_adv)):
preds_orig = extract_predictions(detections[i], 0.8)
img = np.asarray(x_advPGD[i].transpose(1,2,0))
plot_image_with_boxes(img=img.copy(), boxes=preds_orig[1], pred_cls=preds_orig[0], title="Detections")

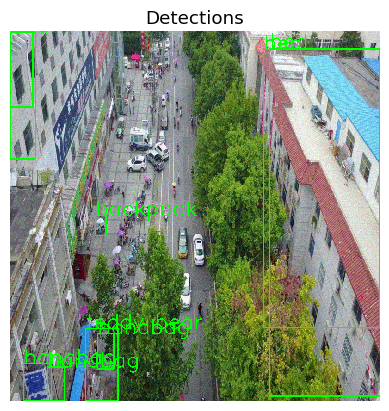

The effect of the attack is evident, as the detector recognizes few objects which are not in the image (teddy bear, backpack).
4. JPEG compression parameters - high quality¶
We now investigate the effect of the defense on this adversarial example, starting with a very high image quality. To assess the effect of the defense, we first plot the image resulting from image compression and then plot the output of the object detector on that image (however with the adversarial example in the background).
from art.defences.preprocessor import JpegCompression
preprocessing_defense = JpegCompression(clip_values=(0,1),
channels_first=True,
apply_predict=True,
quality=75
)
detector_defended = JaticPyTorchObjectDetector(model_type="detr_resnet50",
device_type='cpu',
input_shape=(3, 800, 800),
clip_values=(0, 1),
attack_losses=( "loss_ce",
"loss_bbox",
"loss_giou",),
preprocessing=(MEAN, STD),
preprocessing_defences=[preprocessing_defense])
'''

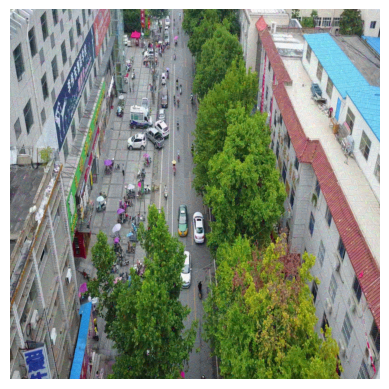

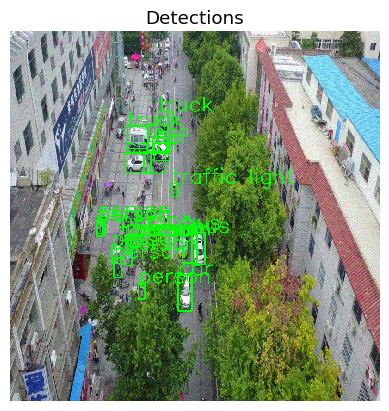

View detections on adversarial images
'''
img = np.asarray(x_advPGD[0]).transpose(1,2,0)
print(np.shape(img),img.reshape(1,800,800,3).ndim)
detections = detector(sample_data)
preds_orig = extract_predictions(detections[i], 0.8)
compressed = preprocessing_defense(img.copy().reshape(1,800,800,3))[0]
print(np.shape(compressed))
plt.imshow(compressed.reshape(800,800,3))
plt.axis("off")
plt.show()
#plt.imshow(img.reshape(800,800,3))
#plt.show()
#plot_image_with_boxes(img=uncompressed,
# boxes=preds_orig[1], pred_cls=preds_orig[0], title="Detections")
adv_detections = detector_defended(x_advPGD)
for i in range(1): #len(adv_detections)):
preds_orig = extract_predictions(adv_detections[i], 0.8)
plot_image_with_boxes(img=x_advPGD[i].transpose(1,2,0).copy(),
boxes=preds_orig[1], pred_cls=preds_orig[0], title="Detections")
In the first image, we see slight changes in the image (if at all). In the second image, we see that while more objects are detected, only some of them (such as “person”) are actually in the image. While the preprocessing thus alleviates the attack, it cannot recover full performance.

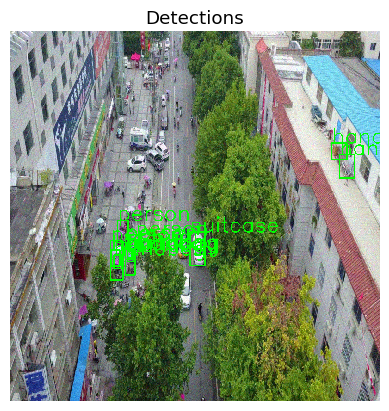

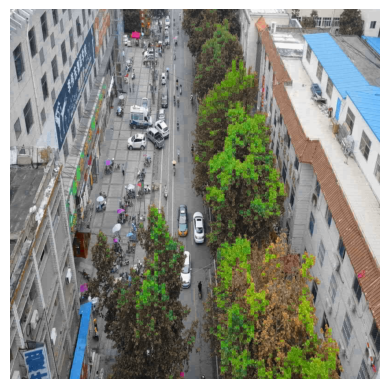

5. JPEG compression Low Quality¶
We thus repeat the previous experiment, using a much lower value for quality, 15.
from art.defences.preprocessor import JpegCompression
preprocessing_defense = JpegCompression(clip_values=(0,1),
channels_first=True,
apply_predict=True,
quality=15
)
detector_defended = JaticPyTorchObjectDetector(model_type="detr_resnet50",
device_type='cpu',
input_shape=(3, 800, 800),
clip_values=(0, 1),
attack_losses=( "loss_ce",
"loss_bbox",
"loss_giou",),
preprocessing=(MEAN, STD),
preprocessing_defences=[preprocessing_defense])
'''
View detections on adversarial images
'''
img = np.asarray(sample_data.__getitem__(0)['image']).transpose(1,2,0)
print(np.shape(img),img.reshape(1,800,800,3).ndim)
detections = detector(sample_data)
preds_orig = extract_predictions(detections[i], 0.8)
compressed = preprocessing_defense(img.copy().reshape(1,800,800,3))[0]
print(np.shape(compressed))
plt.imshow(compressed.reshape(800,800,3))
plt.axis("off")
plt.show()
#plt.imshow(img.reshape(800,800,3))
#plt.show()
#plot_image_with_boxes(img=uncompressed,
# boxes=preds_orig[1], pred_cls=preds_orig[0], title="Detections")
adv_detections = detector_defended(x_advPGD)
for i in range(1): #len(adv_detections)):
preds_orig = extract_predictions(adv_detections[i], 0.8)
plot_image_with_boxes(img=x_advPGD[i].transpose(1,2,0).copy(),
boxes=preds_orig[1], pred_cls=preds_orig[0], title="Detections")
In the first image, we now see strong changes in colors, for example in the red roof or the trees. In the second image depicting the detected objects, we see that much of the performance is indeed recovered.
6. Conclusion¶
In JPEG compression, a lower quality reduces the details remaining in the image and thus removes stronger perturbations. However, this may be circumvented by even stronger attacks. Yet, the quality in this defense is an important parameter to be considered in T&E.
7. Next Steps¶
Check out other How-to Guides focusing on:
